POLYMERS

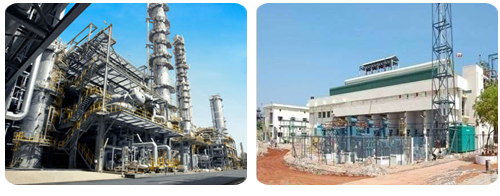

We are the authorized distributor of PVC Resin for M/s. DCW Ltd. in western region of India. DCW Ltd is the pioneer of PVC Resins manufacturing technology in India since 1970. Petrochemicals has been the new buzzword of Indian industry in recent years. In 1970, DCW became one of the first in India to enter this growing field by setting up a PVC resin plant at Sahupuram in Tamil Nadu in Southern India.

DCW was the first, and is currently the only Indian producer to handle and store imported VCM, a volatile gas. It successfully erected a total storage capacity of 5,600 MT at Tuticorin port (a distance of 30 km from the plant) - including a huge 5000 M3 sphere. This installation is one of the few of its kind in South East Asia and gives the company a competitive edge in meeting its import requirements.

polymer
Sheet for DCW PVC resin (suspension Grade) K – 65

Typical Properties  Unit        Method of Analysis
K-Value   ISO/R-174-1961    64-66
Bulk Density  gms/cc  IS 4669 –1968   0.50 +/- 0.01
Volatile Matter Max  %     IS 4669 – 1968  0.30
Seive Analysis 42 Mesh %    IS 460 – 1962    99.90
Foreign Matter / 100 gms  nos.   As per Japanese Std  32
Residual VCM ppm ppm ASTM D/3749 – 1987 2 ppm max
Thermal Stability  min  IS 4669 – 1968 2 – 3 Min
Plastisizer Aborption   phr     IS 4669 – 1968    38 – 41 phr
DCW CPVC COMPOUND PALLETS FITTING GRADE
Sr. No. Test Unit        Method Result
1   Specific Gravity - ASTM D 792 1.49
2   Vicat Softening Temp at 5 kg load deg.C ASTM D 1525 102.0
3   Heat Deflection Temp at 264 Psi (Annealing at 100°C for 24 hours) deg.C ASTM D 648 100
4   Tensile Strengh at yeild Mpa ASTM D 638 55
5   Tensile Modulus Mpa ASTM D 638 2531
6   Flexural Strengh at yeild Mpa ASTM D 790 114
7   Flexural Modulus Mpa ASTM D 790 3833
8   Notched Izod Impact Strengh J/m ASTM D 256 126
DCW-CPVC-RESIN-FITTING-GRADE
Sr. No. Test Unit        Method Result
1   Chlorine Content Wt % - 67.1
2   Bulk Density Gm/cm3 ISO 60 0.6761
3   Foreign Particles Nos/100gm ISO 1265 14.0
4   K-Value of PVC Resin - ISO 1628-2 57.6
DCW-CPVC-RESIN-PIPE-GRADE
Sr. No. Test Unit        Method Result
1   Chlorine Content Wt % - 67.4
2   Bulk Density Gm/cm3 ISO 60 0.6409
3   Foreign Particles Nos/100gms ISO 1265 13.0
4   K-Value of PVC Resin - ISO 1628-2 66.0
